• Measures AC current up to 100A, voltage up to 250V AC.
• Includes isolation transformer.
• Measures frequency of AC line.
• Output values can be scaled accordingly.
• LEN value 5.

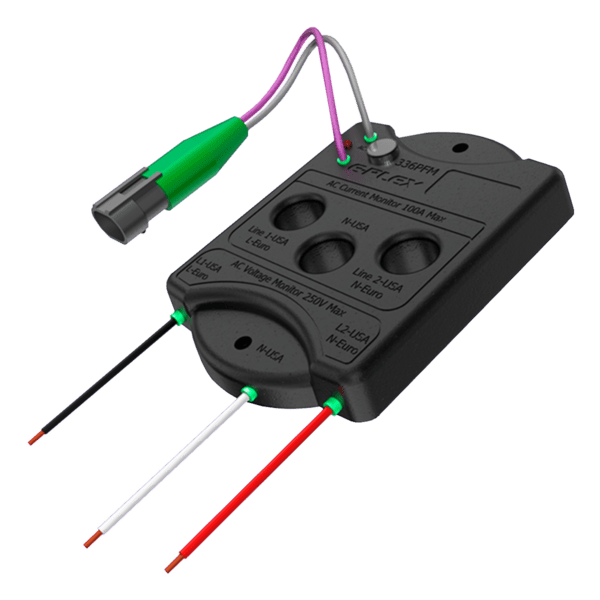

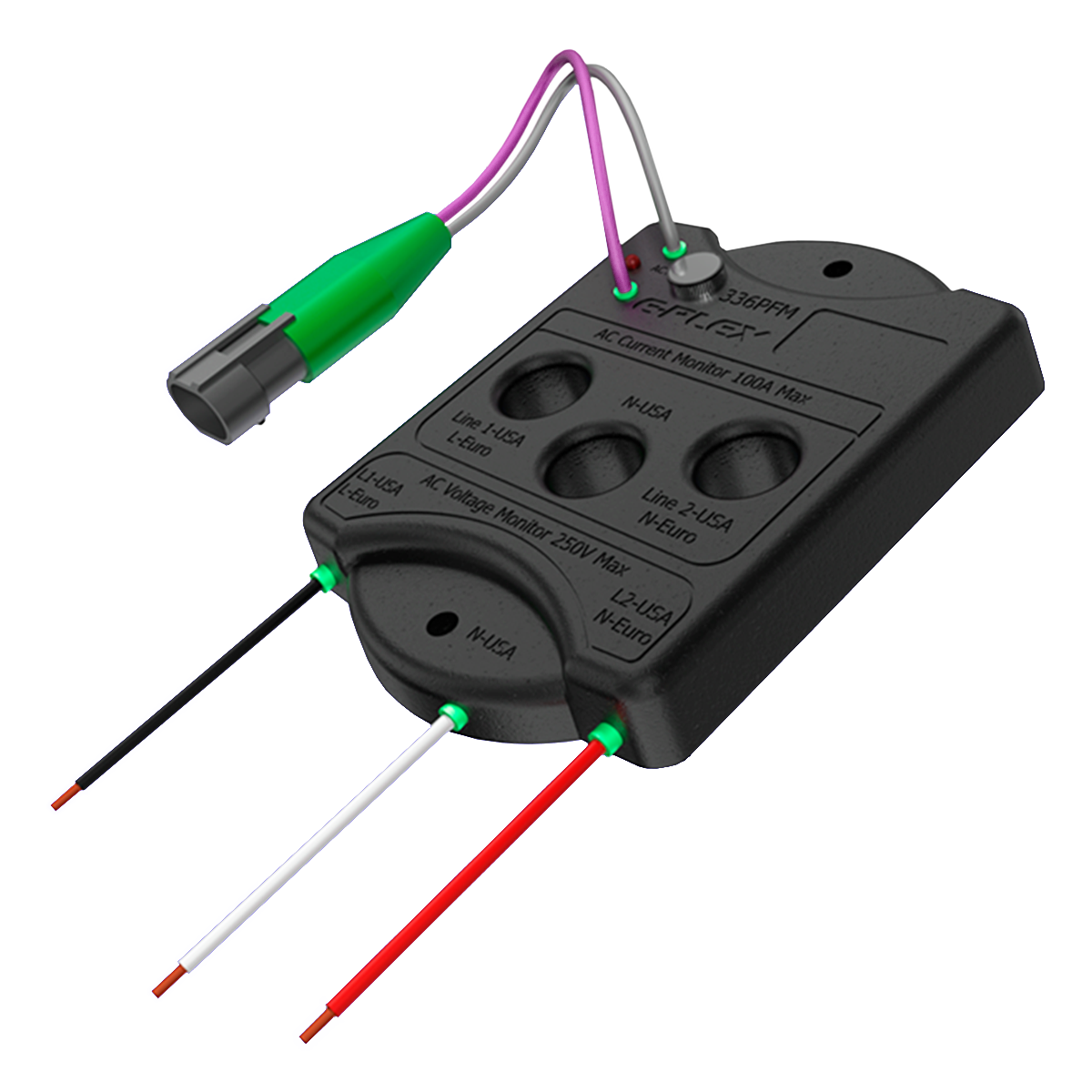

The E-Plex® 336PFM can be used to measure AC current up to 100 amps and voltage up to 250V AC and
frequency of the AC supply. Furthermore, there is no need to use an external isolation transformer.
The AC power monitor is capable of scaling the output values using E-Plex table builder. Table builder allows
the end user to automatically create a profile of the input based on a set of data points.
NOTE: THIS MODULE IS REPLACED BY AN 829PFM WITH CUSTOM FIRMWARE.
