• 2 relay outputs.
• 4 inputs, confgurable as active high or low.
• Inputs isolated from E-Plex ground.
• Output relay contacts rated for 10 amps AC or 5
amps DC.
• Status LEDs for inputs and outputs.
• Ideal for controlling generators.
• LEN value 23 @12V.
Backorder
356DRIM
$365.00

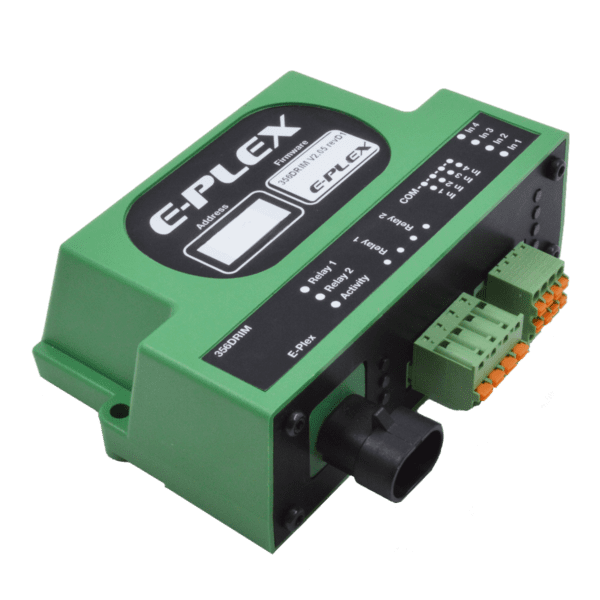

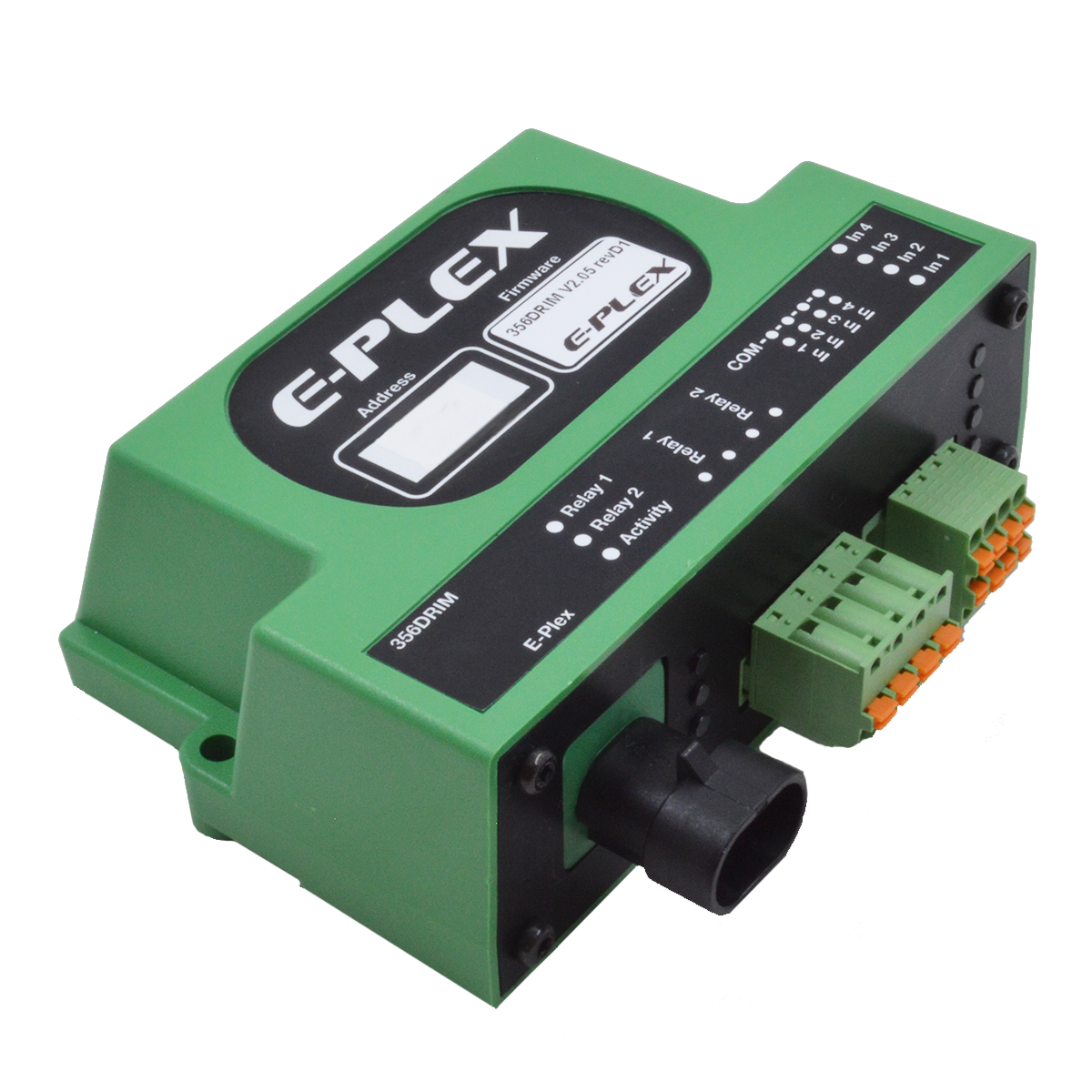

The E-Plex 356DRIM is a flexible input and output module consisting of 2 normally open relay outputs
and 4 digital inputs. Each digital input is configurable as either active high or active low through the
E-Logic software.
For output relays, status LEDs are red when the relay is closed. For digital inputs, status LEDs indicate
green for active high input, red for active low input.
Available on backorder
