• 75A max current per bus.
• 20A max current per channel.
• 16 channels maximum.
• Isolation between high and low voltage systems.
• Independent hydraulic magnetic circuit breakers
Single and double pole breakers available.
• Circuit breaker status monitoring.
• User defned default relay state with operation
via traditional circuit breakers providing manual
override capabilities.
• LEN value 2.
Obsolete

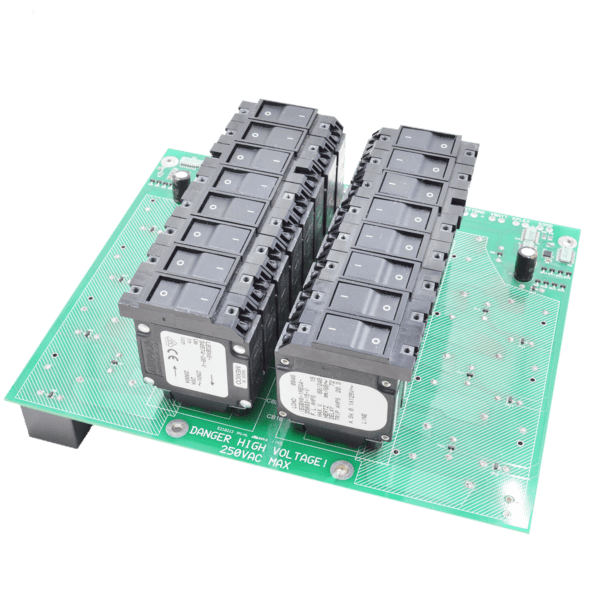

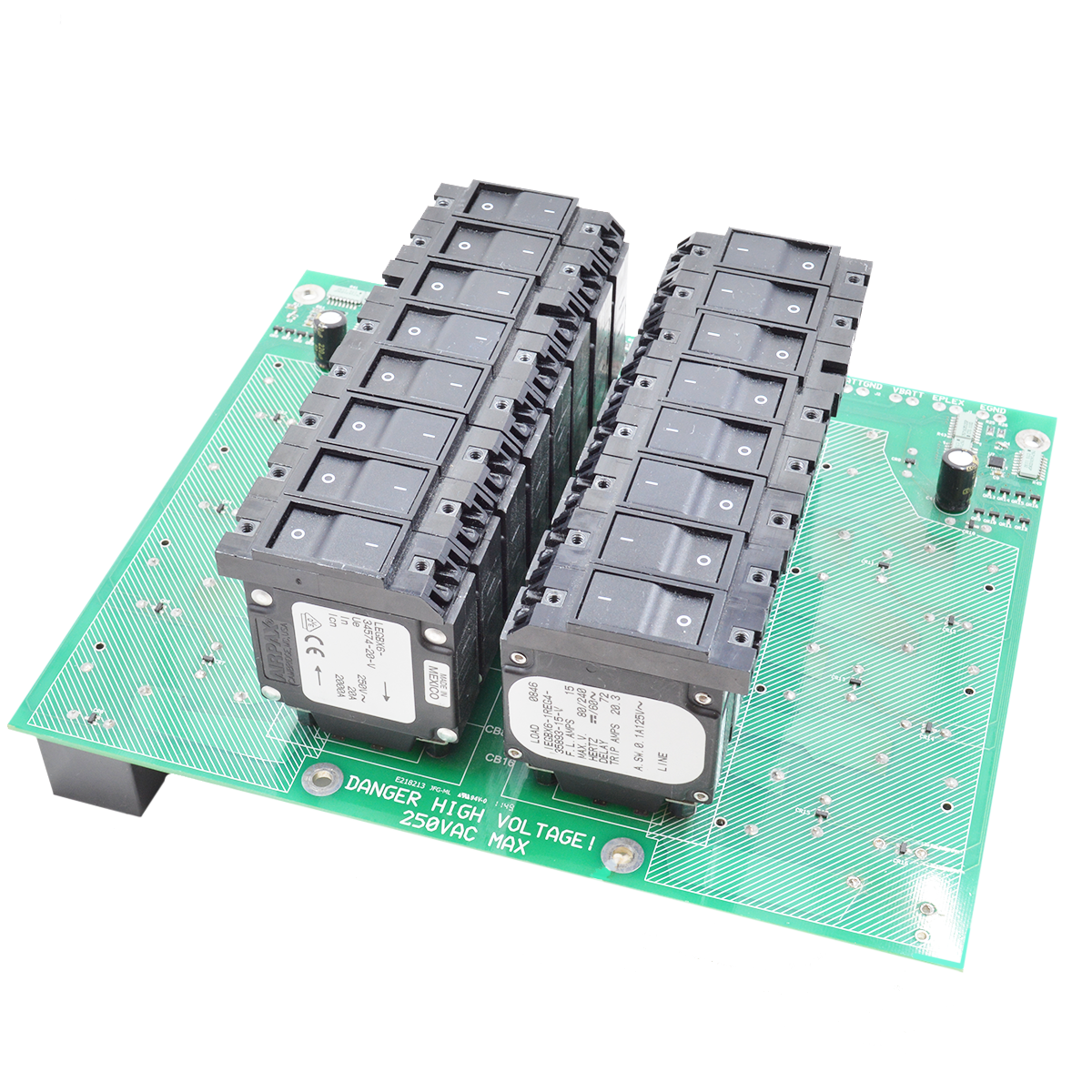

439DMAC
The E-Plex 439DMAC series has been designed to simplify electronic systems wiring by providing more
control over AC loads. The module provides AC distribution and control for 110 and 220 single and split
phase applications. Hydraulic magnetic circuit breakers provide traditional circuit protection. The 439DMAC
supports a combination of single and double pole breakers. Manual override capabilities are provided through
the use of a user defined default relay state with operation via traditional circuit breakers.
The 439DMAC can be combined with the 336PFM or the 442EMS for a robust AC energy management
solution.
