• Up to 25A max current per channel.
• Up to 8 channels maximum.
• Isolation between high and low voltage systems.
• Utilizing readily available MCB’s and enclosures.
• Circuit breaker status monitoring.
• User defined default relay state with operation via traditional MCB’s providing manual
Override capabilities.
• DIN Rail Mounting.
• Designed to fit into standard contractor/consumer units.
• Ability to parallel channels for current sharing or double pole protection.
• LEN value 2.
Backorder
832DMAC
$890.00

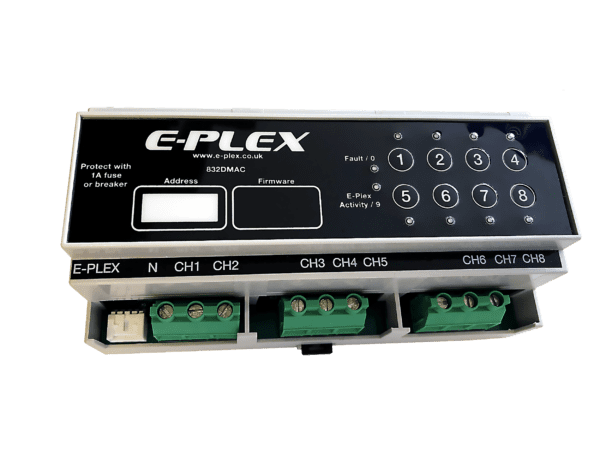

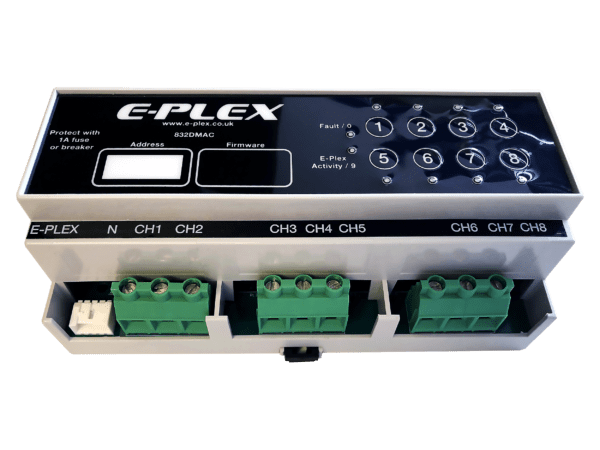

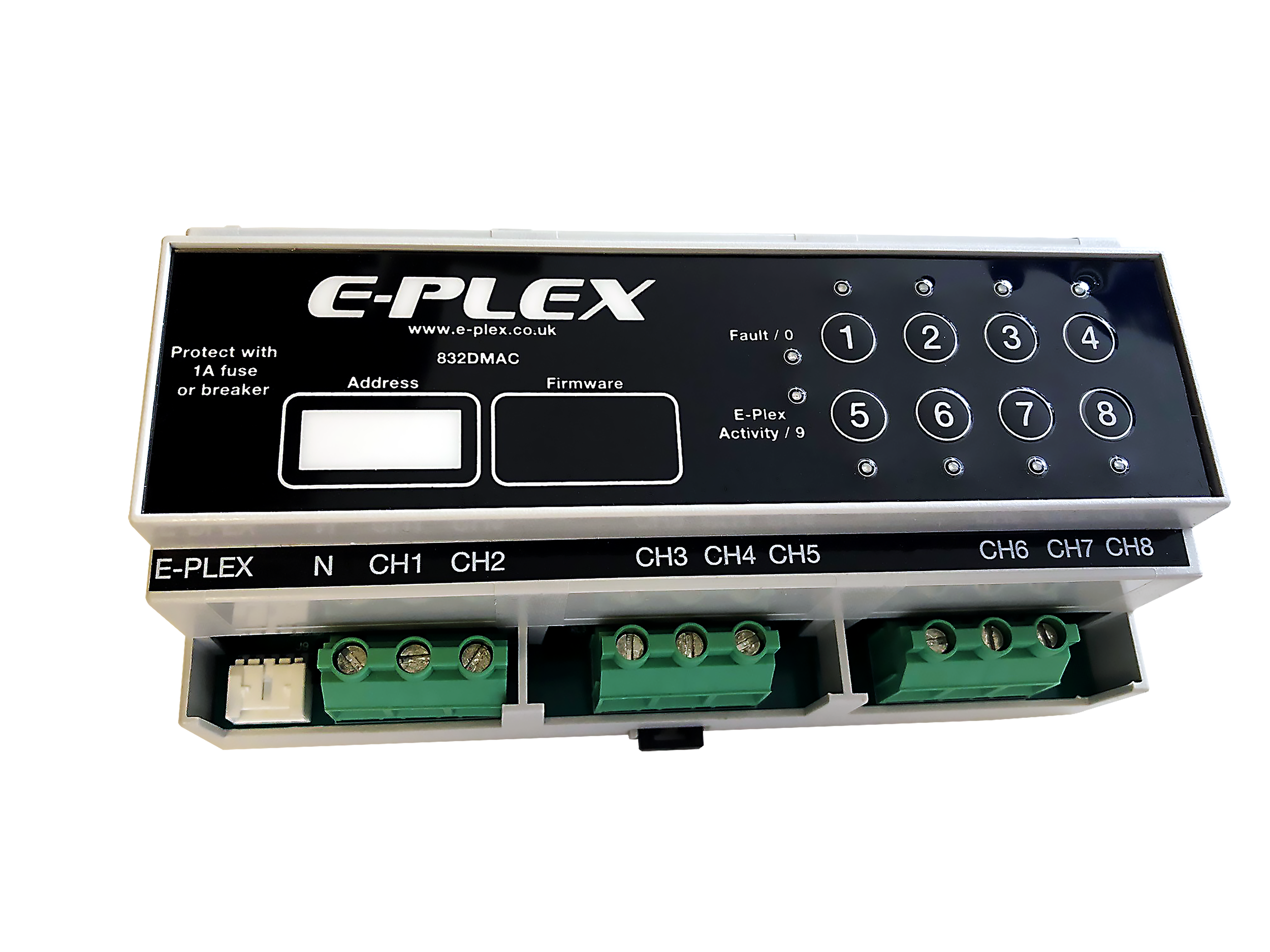

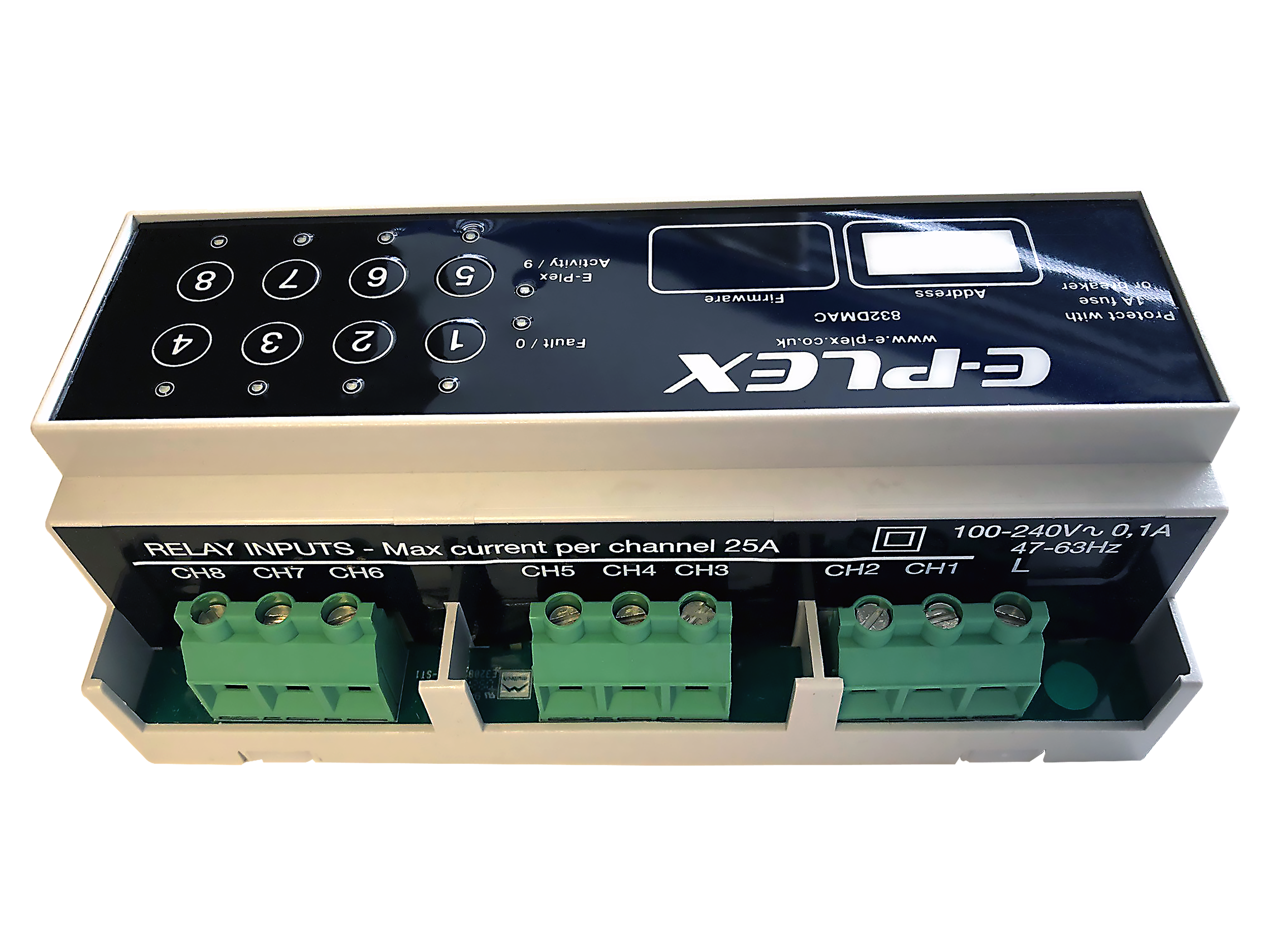

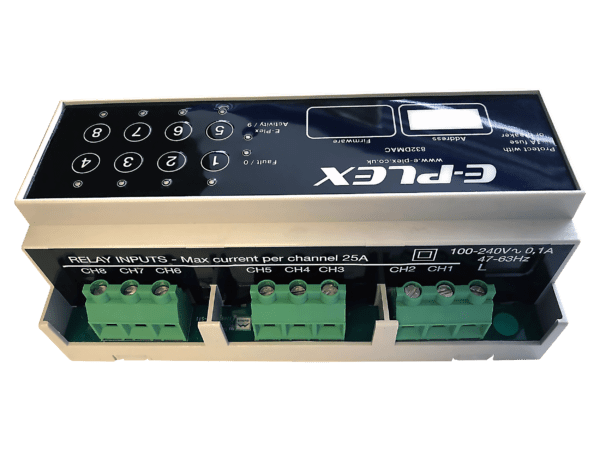

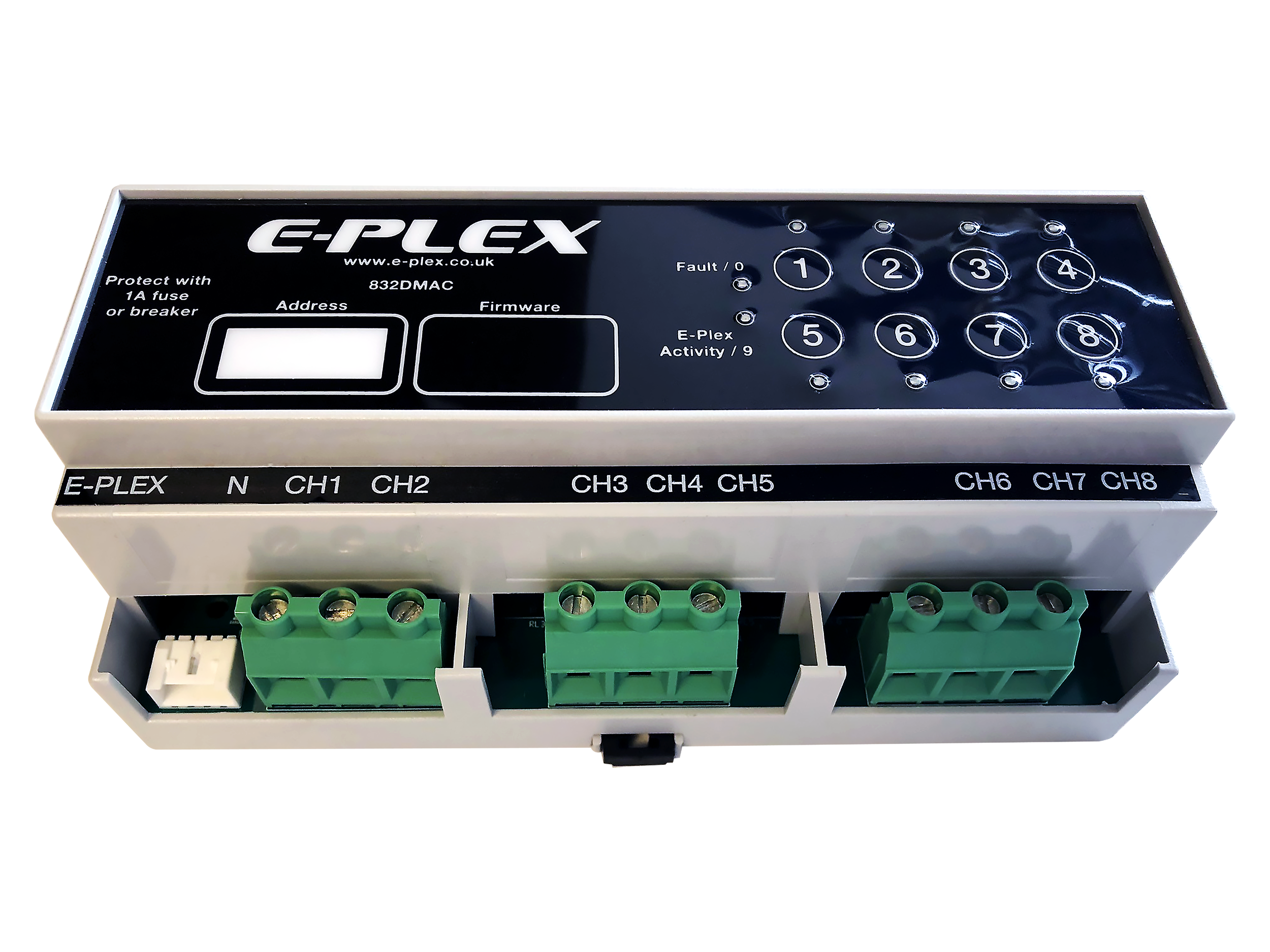

The E-Plex 832DMAC has been designed to simplify electronic systems wiring by providing more control
over AC loads. The module provides AC distribution and control for 110 and 220 single and split-phase
applications.
Manual override capabilities are provided through the use of a user-defined default relay state with
operation via traditional miniature circuit breakers (MCB).
The 832DMAC can be combined with the 336PFM for a robust AC energy management solution.
NOTE: CIRCUIT BREAKERS ARE NOT INCLUDED.
Available on backorder
